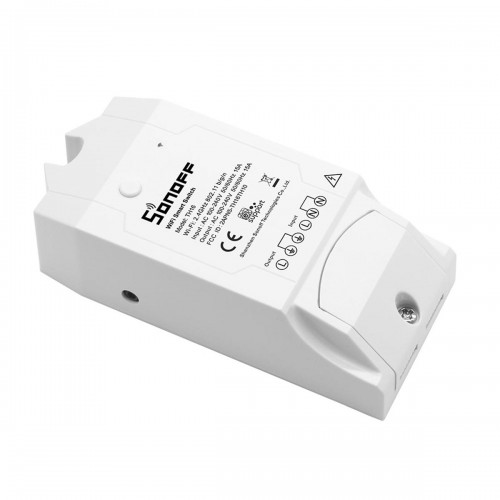

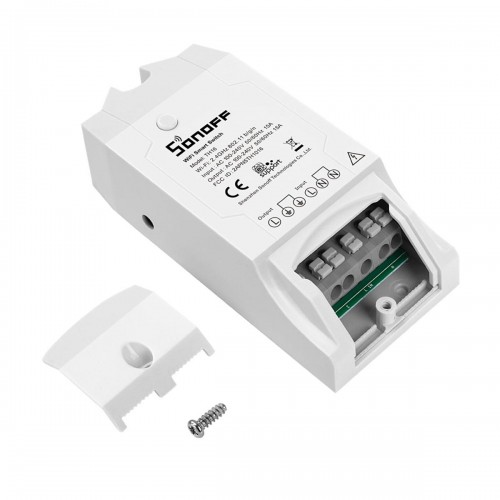

SONOFF TH16-R2 - Wi-Fi Smart Switch Temperature & Humidity Monitoring 15A

Name: SONOFF TH16-R2 - Wi-Fi Smart Switch Temperature & Humidity Monitoring 15A
Brand: SONOFF
SKU: A12-80009
Price: 14.60 EUR
Availability: OutOfStock

ΜΗ ΔΙΑΘΕΣΙΜΟ

SONOFF TH16-R2 - Wi-Fi Smart Switch Temperature & Humidity Monitoring 15A

Σύμφωνα με 0 αξιολογήσεις. Γράψτε μια αξιολόγηση

14,60€

Χωρίς ΦΠΑ: 11,77€

Ποσότητα

Καλάθι

Επιθυμητό Σύγκριση

'Η

ΠΕΡΙΓΡΑΦΗ

Specification

Input voltage: 100~ 240V AC
Input current: Max 10A /15A
Max. Power: 2200W(10A) /3500W(15A)
Humidity: 5%-90%RH, Non-condensing
Operating Temperature: 0ºC-40ºC(32°F-104°F)
Wireless Standard: 802.11 b/g/n
Security Mechanism: WPA-PSK/WPA2-PSK
Enclosure Material: Fire-retardant ABS V0
Dimension: 114*51*32 (mm)
Supported temperature, humidity sensors: Si7021, AM2301, DS18B20
Switch Channel: Single
DIY Mode: No
Works With: Amazon Alexa, Google Assistant, Samsung Smarthings, Yandex Alice
Certified Compliance: CE, RoHS, FCC
Εγγύηση: 1 Χρόνο

Περιγραφή

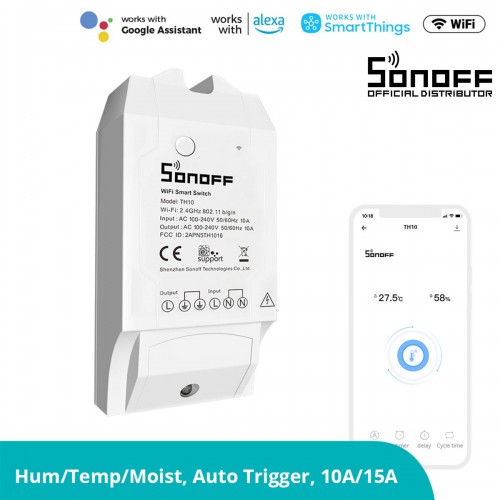

Sonoff TH10/TH16 is a wireless temperature and humidity monitoring switch which can remotely monitor and set temperature and humidity range to turn on/off connected appliances through the iOS/Android APP eWeLink. Just as the name indicates, the Sonoff TH temperature and humidity monitor device supports two maximum current supply specifications: 10A or 15A.

Sonoff TH10/ TH16 remote temperature monitor and wireless humidity monitor WiFi switch supports presetting the range for temperature or humidity. When the temperature or humidity of your home environment falls within the range, it will automatically turn on or off the connected devices.

Sonoff TH10/ TH16 supports four kinds of temperature monitor and humidity monitor sensors, mentioned below:

Si7021, AM2301, DS18B20

Si7021(wiki) Highly Recommended!

The sensor should be plugged into the smart switch before power-on. It is not advised to plug or unplug the sensor after power-on. DS18B20 is waterproof, which can only measure temperature. Other sensors can measure both temperature and humdity.

With the eWeLink app, users can create simple conditional statement (Smart Scene) to trigger on/off other smart devices. This means users can use Sonoff TH10 or Sonoff TH16 with Si7021, AM2301, DS18B20 or DHT11 sensor to detect temperature/humidity, and then set specified temp. or hum. ranges as conditions to trigger on/off other smart devices in the same account, such as Sonoff Basic, Sonoff RF, Sonoff SV, S20. This device works perfectly with electric fan, air conditioner, humidifier, smart fish tank, watering system, etc.

The sensor extension cable can connect the SONOFF temperature and humidity sensors to extend your devices to distance of 60m, suitable for SONOFF DS18B20, Si7021 and AM2301 temperature & humidity sensor. AM2301 can be extended to 60M, DS18B20 can be extended to 8M, SI7021 can be extended to 60M.

Si7021 Sensor

Temperature Measuring Range: –40℃~+85°C
Humidity Measuring Range: 0~100%RH
Storage Temp.: –65℃~+150°C
Operating Voltage: 2.2-3.6V
Weight: 26g
Length: 0.5m

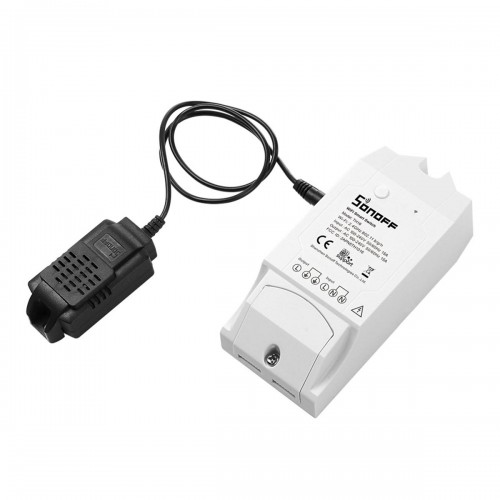

AM2301 Sensor

Temperature Measuring Range: -40℃~+80℃
Humidity Measuring Range: 0~99.9%RH
Power Supply: 3.3-5.2V DC (5V recommended)
Temperature Sensor Type: Resistive
Humidity Sensor type: Capacitive
Weight: 22g
Length: 0.5m

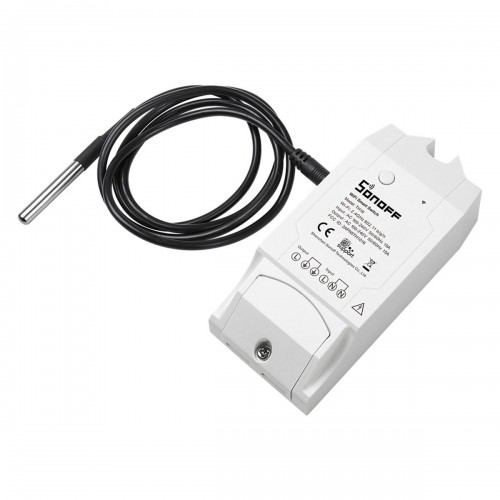

DS18B20 Sensor

Type: Waterproof temperature sensor
Probe: Stainless steel temperature probe
Temperature Measuring Range: -55℃~+125℃
Power Supply: 3.0-5.5V
Weight: 26g
Length: 1m

Sensor Extension Cable

Insulation resistance: Min. 500mΩ
Conductor resistance: Max. 5Ω
Certification: RoHS
Length: 5m cable length & Max. 60m extendable length.
Application: Suitable for SONOFF DS18B20, Si7021 and AM2301 temperature & humidity sensor, AM2301 can be extended to 60M, DS18B20 can be extended to 8M, SI7021 can be extended to 60M.
